Dronetag DRI

USA EU compliant
$55.00
Maximum purchase: 10

The smallest and lightest device offering affordable Direct / Broadcast Remote capability to drone manufacturers or integrators. It offers a cost-effective, lightweight, and user-friendly option to manufacture remotely identifiable drones. With the Dronetag DRI solution, manufacturers are on a frictionless path toward the production launch of Standard Remote ID (US) and C-class (EU) drones.

DRI comes in two variations (please select your variant below):

  1. with a U.FL port for an external antenna (includes Bluetooth Wire antenna)
  2. with a built-in antenna

As an accessory to the DRI version with an External U.FL Antenna port, you can purchase a Bluetooth Tube Antenna with a U.FL connector. This optional antenna offers stronger performance than the Wire Antenna that is included in the package.

Variant: Built-in Antenna
Quantity
In stock & Next-Day Shipping!

  Manuals & guides available

We strongly recommend exploring our comprehensive website at help.dronetag.com

  Check product availability

Some of our items are currently on backorder, check the availability before you order

  Be aware of cancellation fees

Orders are subject to cancellation fees, as outlined in our Terms and Conditions

product_icons_1.png App
Web, iOS & Android
product_icons_2.png Compatibility
All standard Pixhawk controllers - PX4 or Ardupilot
product_icons_3.png Remote ID
Broadcast / Direct



product_icons_4.png Battery life
no battery

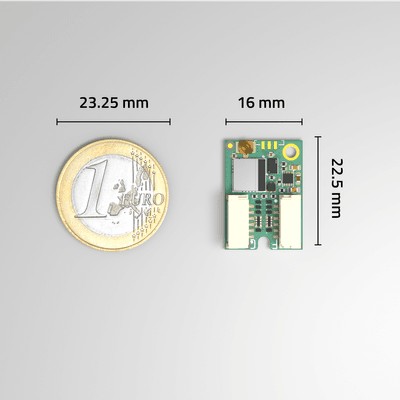

product_icons_5.png Dimensions
22.5 x 16 x 5 mm
product_icons_6.png Weight
1.5 g / 0.5 g (with/out JST connectors)

Plug & Play for Pixhawk Cube or Similar You only need one cable to add Remote ID to your aircraft. Dronetag DRI is compatible with all standard Pixhawk controllers running PX4 or Ardupilot. Plug it into your TELEM port, configure the appropriate baud rate, and you are ready to fly. Not using MAVlink, PX4 or Ardupilot FCs? Having custom firmware? No problem; we can customize our solution to your needs.

UART Pass-Through Integration Dronetag DRI will not take away any of your existing ports. Thanks to our UART forwarding feature, you can integrate it between the flight controller and your serial peripheral.

Two Options One that comes with a U.FL connector for an external antenna and the second with an internal antenna already on board.

Flexible Mounting

Dronetag DRI is a small board, so you can either use double-sided tape or M2 screws to mount it in the desired place.

ASD-STAN EN 4709-002 & ASTM F3411-22 Compliant

Suitable for all regions adopting any of those standards. Broadcast over Bluetooth 4 & 5 to up to 3 km (1.8 miles) range. OTA Firmware Updates

Comes with Standardized SN

Our DRI module already has ANSI/CTA-2063-A serial number baked inside. Refer to this SN during the compliance process.

Dronetag DRI with External U.FL Antenna Port

  • 1x Dronetag DRI
  • 1x Cable 6-PIN GH to 6-PIN GH 10 cm
  • 1x Bluetooth Wire Antenna
Dronetag DRI External

Dronetag DRI with Built-in Antenna Port

  • 1x Dronetag DRI
  • 1x Cable 6-PIN GH to 6-PIN GH 10 cm
Dronetag DRI Built-in
Remote ID types
Direct (EU) / Broadcast (US)
Short-range radio
Bluetooth 2.4 GHz
Sensors
None, data read from flight controller
Average current consumption
3 mA
Maximum current consumption
10 mA
Mounting
M2 holes or double-sided tape
Operating temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Dimensions
22.5 × 16 × 5 mm (0.89 × 0.62 × 0.19 in)
Weight
With JST connectors 1.5 g (0.56 oz)
Without JST connectors 0.5 g (0.017 oz)
Indicators
RGB LED to show the state
Antenna
Variant with internal or external one
Antenna Connectors
Optionally 1 × U.FL (IPEX compatible)
Communication Connectors
2 × JST GH 6-pin (1.25 mm pitch)
Communication Protocol
UART (3.3 – 5 V tolerant)
Supported Message Protocol
MAVlink 2
Supported baud rates
Standard ones - configurable in Dronetag app
Input voltage
3.3 – 17 V
Input voltage regulator
Low-noise buck converter
Remote ID Standards
ASD-STAN EN 4709-002 & ASTM F3411-22
Certifications
Uses FCC/CE approved radio module
Remote ID technology
Bluetooth 4.0 Legacy + 5.0 Long Range
Compliant
EU
USA

Product Specific Downloads

Manuals & Apps

If you're looking for the links to download manuals & software for our products, please see our help website, which contains full user manual for our products, detailed tips & guides and links to our apps.
