Dronetag BS Combo
USA
EU
Japan
compliant
$129.00
The best Remote ID solution for FPV pilots, aeromodelers & recreational pilots. BS offers affordable Remote ID capability as defined by FAA and EASA. It is the smallest and lightest RID solution making it easier than ever for pilots to comply with regulations while enjoying their hobby.
- Easy installation and compatibility with various aircraft hardware setups
- Real-time tracking and Remote ID compliant with the FAA and EASA rule
- Powered from the existing aircraft or a small LiPo battery (up to 17V input)
- Configuration and firmware updates via Dronetag App
- Can be used as GNSS input to Betaflight controller
- Support for both Spektrum XBUS and SRXL2.
- Can be used as a telemetry module for popular RC radios
- Flight information logging to flash memory for easy visualization in Dronetag App, Google Earth, or similar
The Dronetag BS Combo is a package with enclosure, battery, charger and antennas turning BS into a completely standalone battery-powered module.
Other antenna options include:
Manuals & guides available
We strongly recommend exploring our comprehensive website at help.dronetag.com
Check product availability
Some of our items are currently on backorder, check the availability before you order
Be aware of cancellation fees
Orders are subject to cancellation fees, as outlined in our Terms and Conditions
AppWeb, iOS & Android
CompatibilityAny drone
Remote IDBroadcast / Direct
Battery lifeUp to 4 hours
Dimensions23 x 16 x 12 mm
Weight5 g with antennas, enclosure & battery
Flexible Mounting
Dronetag BS is a tiny circuit board that can fit inside the smallest aircraft required to be Remote ID compliant. Use double-sided tape or velcro to mount it in the desired place. Dronetag BS comes in a package with enclosure and antennas.
External Antennas for Bluetooth and GNSS
Dronetag BS comes with two U.FL connectors for external antennas. The package does include basic Wire antennas. Other types can be bought on our e shop so you can freely select the proper shape and length.
2-IN-1 SOLUTION FOR POSITIONING AND RID
BS supports both Spektrum XBUS and SRXL2. BS can also feed telemetry data to the Betaflight or similar flight controllers via UART, acting as a GPS module while simultaneously broadcasting Remote ID data.
Supercapacitor for GNSS
Dronetag BS is equipped with supercapacitor to maintain a GPS fix to 7 minutes in case you need to power-cycle your aircraft.
Powered from Aircraft or External Battery
Dronetag BS is designed to operate with power inputs ranging from 3.3V to 17V. The most commonly utilized sources for power input include the flight controller, an aircraft battery or external single-cell LiPo battery.

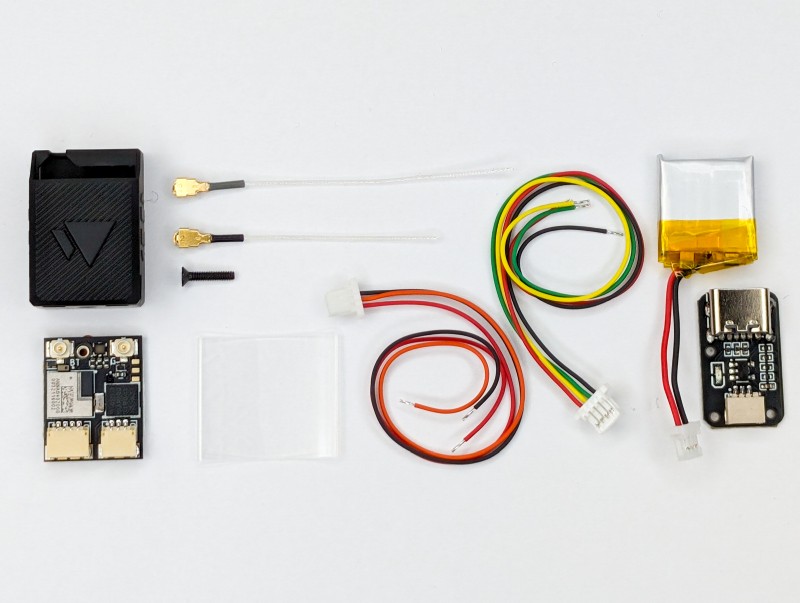

- 1x Dronetag BS
- 1x 3D Printed Enclousure with Battery Slot
- 1x Li-Po Battery
- 1x USB-C Battery Charger
- 1x External GNSS Wire Antenna (U.FL)
- 1x External BluetoothWire Antenna (U.FL)
- 1x Shrink Tube
- 1x JST SH 3-pin to Open Wire Cable
- 1x JST SH 4-pin to Open Wire Cable
- 2x Screw
- 1x Quick Start Guide
- Remote ID types
- Direct (EU) / Broadcast (US)
- Short-range radio
- Bluetooth 2.4 GHz
- Average current consumption
- 15 mA
- Maximum current consumption
- 50 mA
- Mounting
- Adhesive or velcro
- Operating temperature
- -40 °C to 85 °C (-40 °F to 185 °F)
- Dimensions
- 23 × 16 × 12 mm (0.90 × 0.62 × 0.47 in)
- Weight
- 5 g (0.18 oz) with antennas, enclosure & battery
- Supported baud rates
- Standard ones - configurable in Dronetag app
- Input voltage
- 3.3 – 17 V
- Input voltage regulator
- Low-noise buck converter
- Remote ID Standards
- ASD-STAN EN 4709-002 & ASTM F3411-22
- Certifications
- Uses FCC/CE approved radio module
- Remote ID technology
- Bluetooth 4.0 Legacy + 5.0 Long Range
- Compliant
- EU
Japan
USA
