Dronetag C&C Mobile + SATCOM

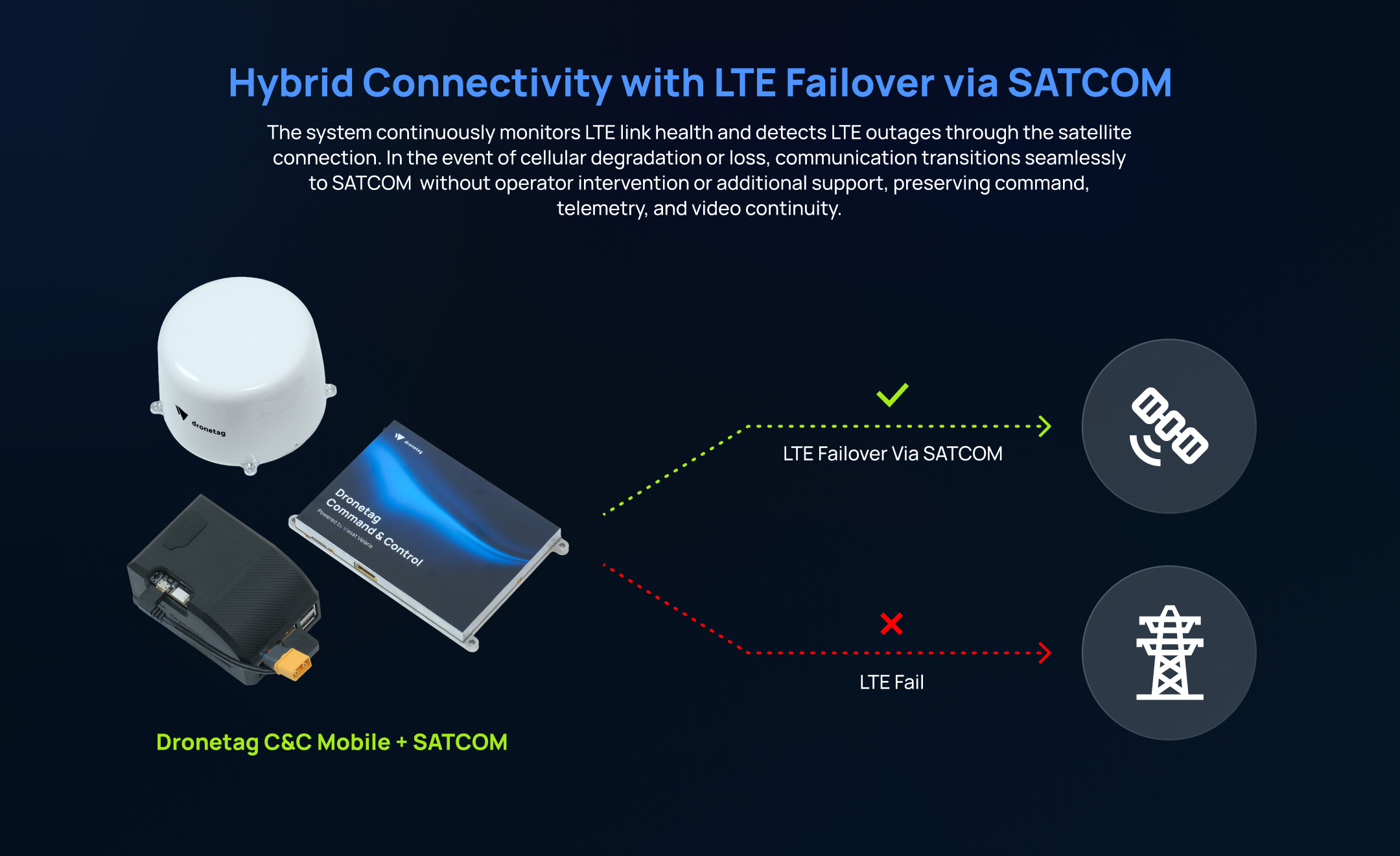

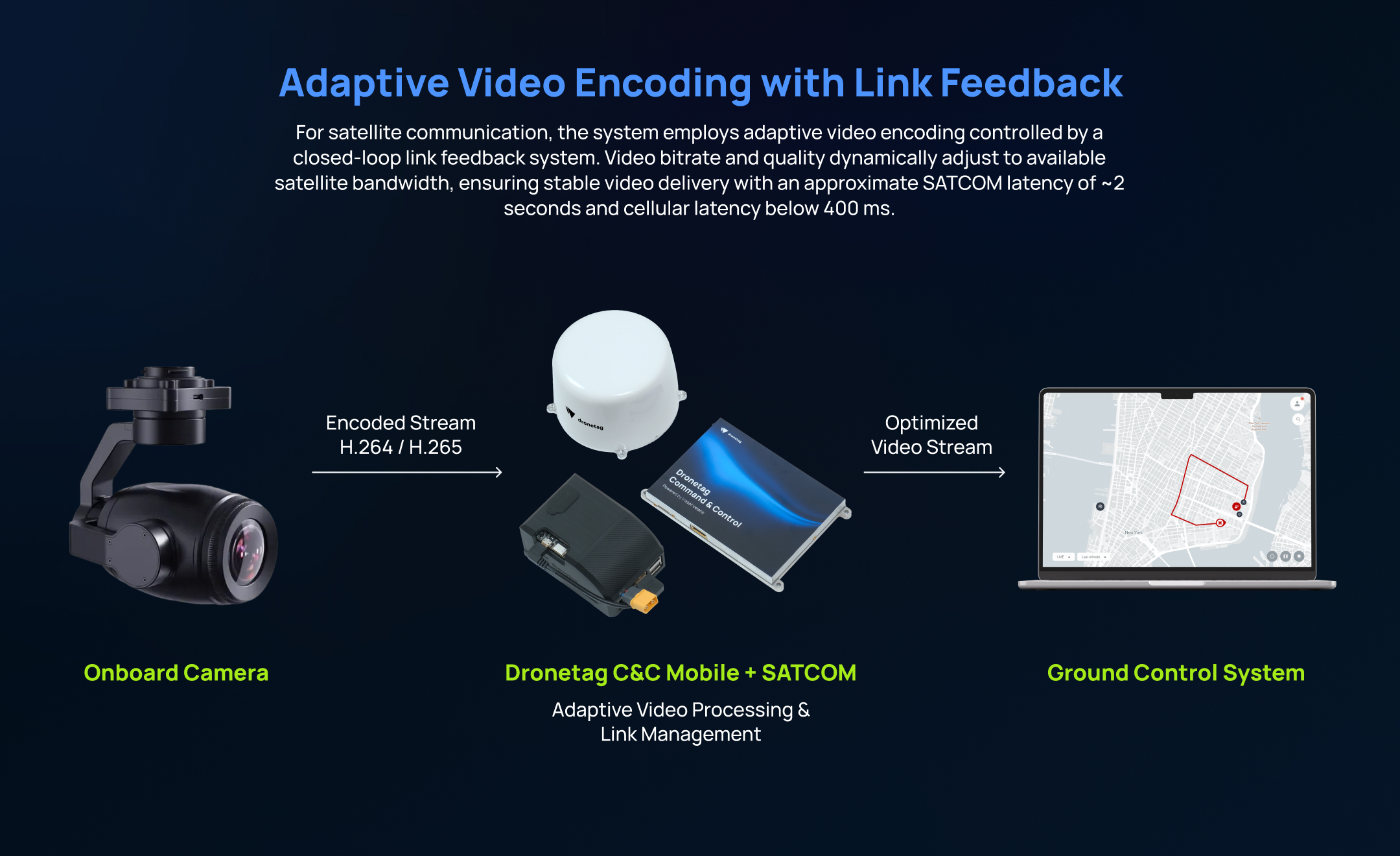

Dronetag C&C Mobile + SATCOM is a multi-link UAV Command & Control solution combining cellular and satellite connectivity for resilient long-range operations. The system extends the Dronetag C&C Mobile unit with dedicated L-band SATCOM connectivity, enabling continuous command, telemetry and low-bitrate video transmission even outside terrestrial network coverage.
The solution is designed for professional BVLOS missions, emergency response and critical infrastructure operations where uninterrupted control is required.
Pricing available upon request. Contact us at sales@dronetag.com.
Manuals & guides available
We strongly recommend exploring our comprehensive website at Help.dronetag.com.
Check product availability
Some of our items are currently on backorder, check the availability before you order.
Be aware of cancellation fees
Orders are subject to cancellation fees, as outlined in our Terms & Conditions.
Dronetag C&C Mobile + SATCOM is a multi-link UAV Command & Control solution combining cellurar and satelite connectivity for resilient long-range operations. The system extends the Dronetag C&C Mobile unit with dedicated L-band SATCOM connectivity, enabling continuous command, telemetry and low-bitrate video transission even outside terrestrial network coverage.
The solution is designed for professional BVLOS missions, emergency response and critical infrastructure operations where uninterrupted control is required.
System Architecture

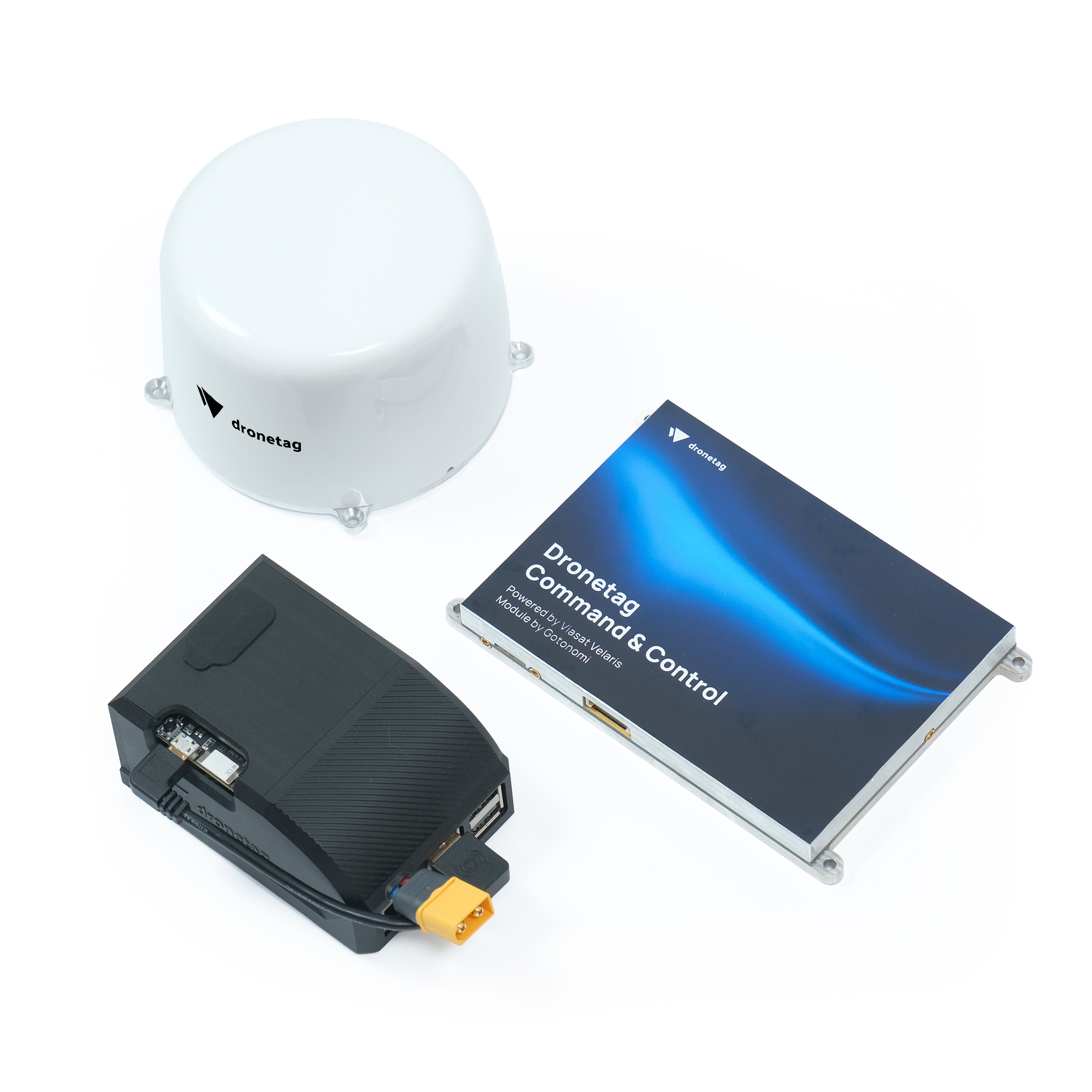

The solution consists of three independent, modular components:
- Dronetag C&C Mobile - Core command & control unit handling UAV integration, MAVLink communication, video processing and cloud connectivity over cellular networks.
- SATCOM Module - Dedicated L-band satellite communication terminal providing global connectivity via the Velaris satellite network.
- SATCOM Antenna - External omnidirectional L-band antenna optimized for UAV installations.
Mechanical
Dronetag C&C Mobile
- Dimensions: 67 x 67 x 48 mm
- Weight: 240 g
- Housing: UV-resistant technical plastic
SATCOM Module
- Dimensions: 140 x 95 x 15 mm
- Weight: 245 g
- Housing: aluminium case for heat dissipation
SATCOM Antenna
- Dimensions: diameter 104 mm typical (up to 122 mm max), height 72 mm
- Weight: 240 g
- Housing: UV- resistant and IP67-rated plastic
Software & Management
- Embedded Linux-Based Firmware
- Unified Management via Dronetag Web Platform
- Over-the-air Firmware Updated
- Real-time Monitoring of Cellular vs SATCOM Link State

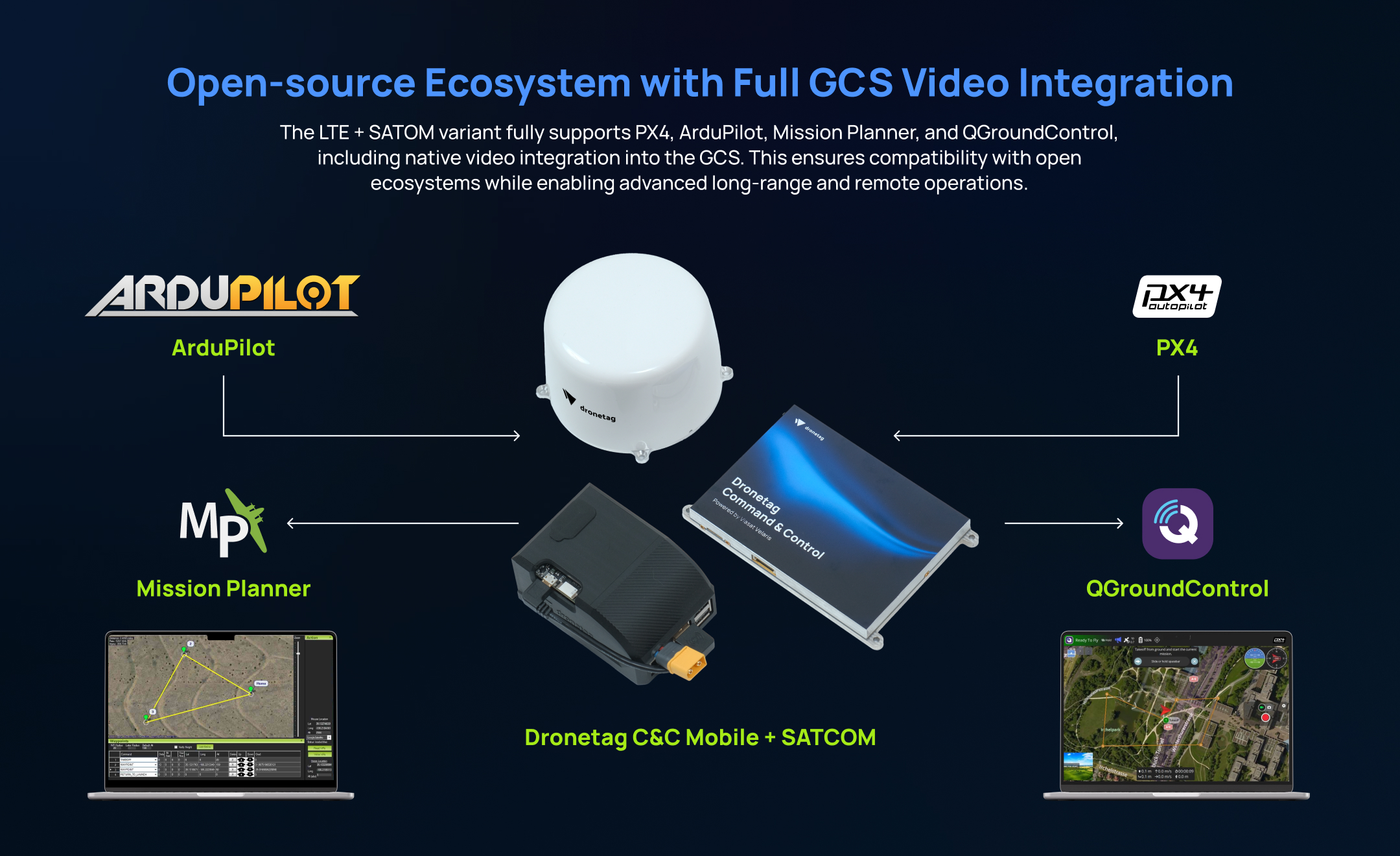

- Native Compatibility with Mission Planner and QGroundControl
- API Support for Enterprise and Government Integrations

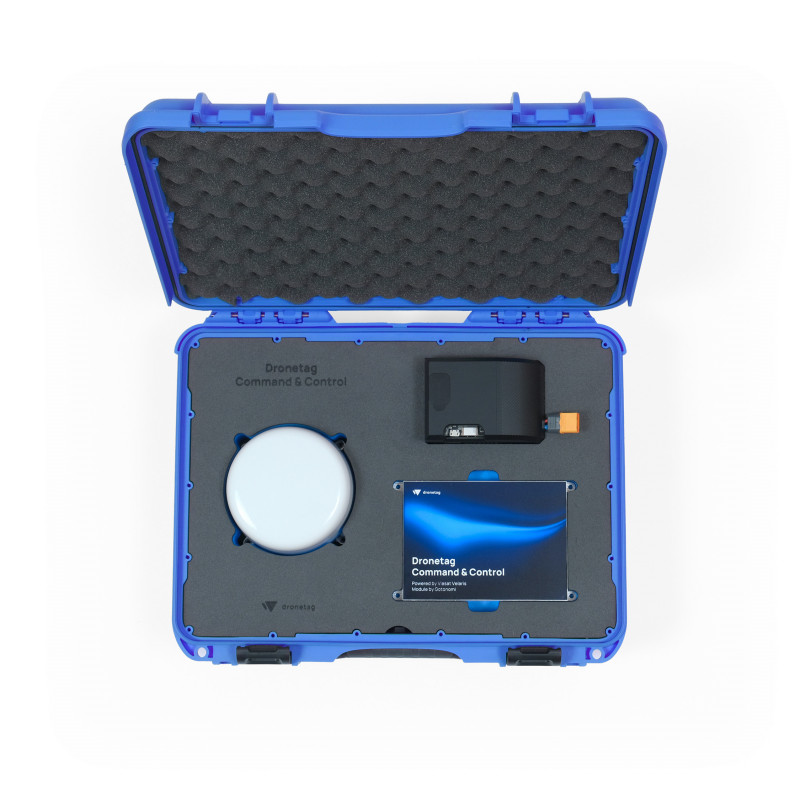

- 1x Blue Case
- 1x Dronetag C&C Mobile
- 1x SATCOM Module
- 1x SATCOM Antenna
- 1x Quick Guide
